Sensing.Art

Sensing.Art

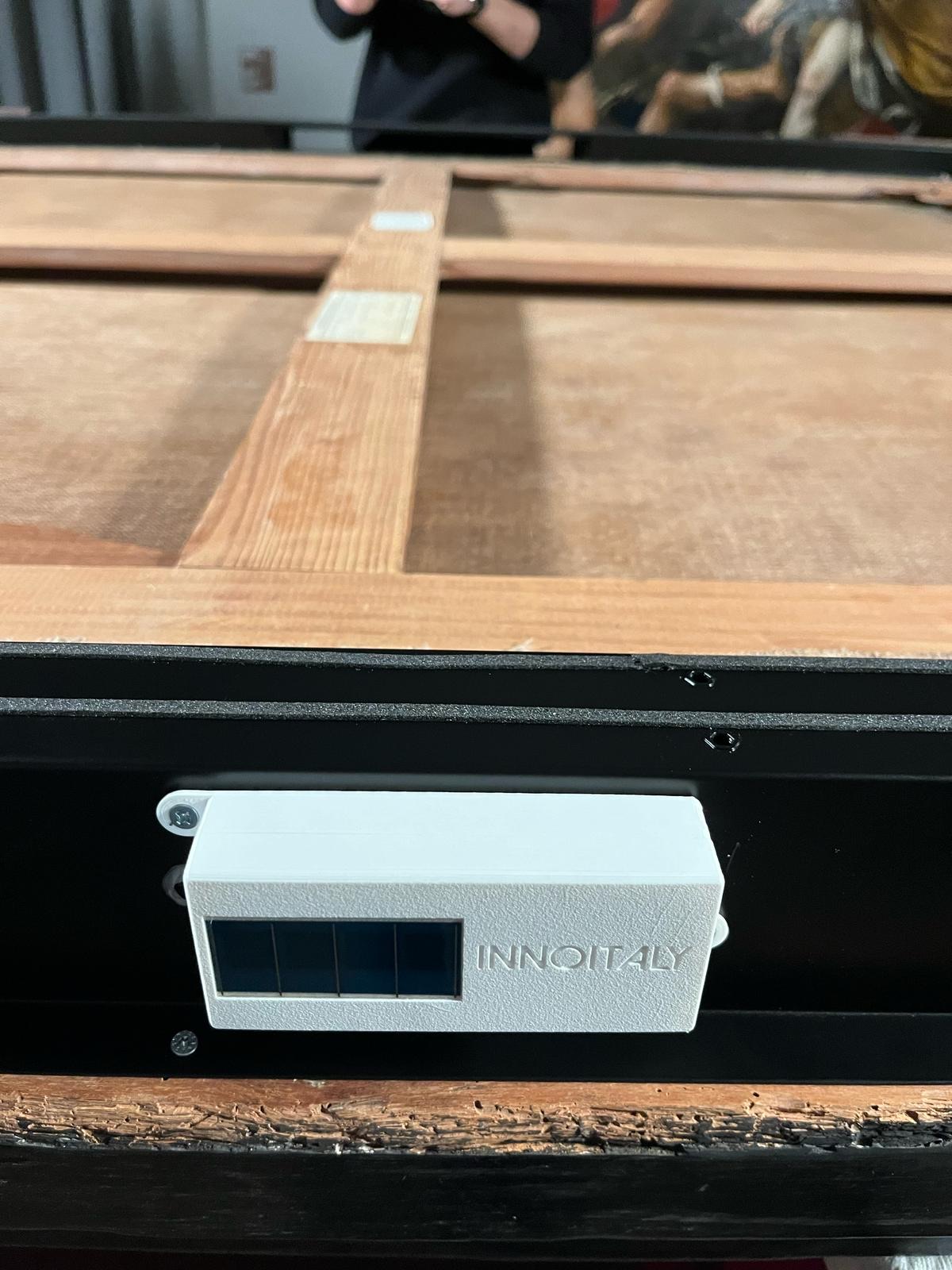

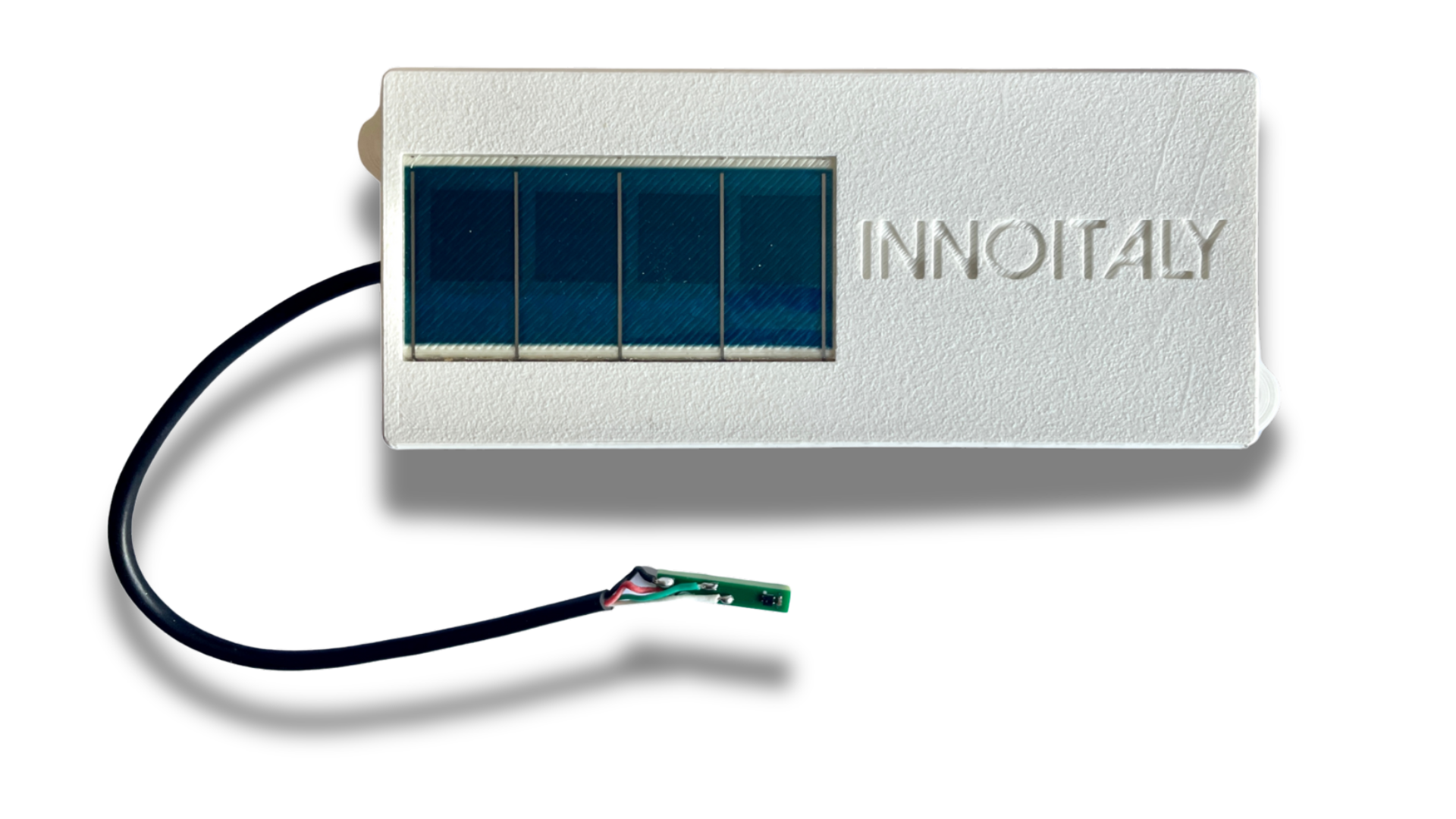

Sensing.Art INNOITALY’s energy-autonomous sensor is an advanced, battery-free solution for real-time monitoring of artworks and valuable assets (available also battery-operated version). Combining energy harvesting, LoRa connectivity, and integrated environmental and motion sensors, it ensures continuous protection during exhibition and transport. The system enables preventive maintenance by detecting out-of-range parameters early. Data are securely managed through INNOITALY’s blockchain-enabled cloud platform, supporting efficient conservation planning and museum logistics.

PRODUCT APPLICATIONS

  • Museums and Galleries
  • Art Transport and Storage
  • Restoration Laboratories
  • Historical Buildings and Archives
  • Exhibitions and Temporary Installations
  • Private collections

KEY FEATURES

INTEGRATED SENSORS
Includes temperature, humidity, acceleration, and pressure sensors, providing comprehensive data on environmental and physical conditions. Luxmeters and spectrometers can also be integrated

ENERGY INDEPENDENCY
The sensor operates without batteries thanks to energy harvesting technology, ensuring continuous and maintenance-free operation during the exhibition inside a museum. It is powered by an integrated solar panel optimized for low-light conditions (from 60 to 150 lux, depending on the model). It is available also the battery-operated version.

HIGH DATA COLLECTION CAPACITY DURING TRANSPORTATION
Thanks to the integrated USB-C port, an external power bank can be connected during transport, allowing the sensor to continue recording and storing monitoring data in its internal flash memory for several days (depending on the power bank's capacity).

LoRa OR SIGFOX CONNECTIVITY
Reliable, long-range wireless communication during the exhibition of the artwork. During transport, the sensor automatically switches to flight mode when the power bank is connected. A version with Sigfox communication protocol is also available upon request.

CLOUD PLATFORM FOR REMOTE MONITORING
INNOITALY provides a proprietary cloud platform for the remote management of multiple sensors, which can be grouped by exhibition area to facilitate museum logistics. The software allows setting alert thresholds for different measured parameters. The platform is integrated with blockchain technology to certify data. If the client already has their own cloud platform, data flow can be integrated via API.

EASY INSTALLATION
The device is compact and lightweight, facilitating installation and maintenance.

DURABILITY
Maintenance-free long-lasting device.

TECHNICAL SPECIFICATIONS



Operating frequency 868 MHz (Europe)
915 MHz (US)

Modulation

 LoRa and Sigfox
Communication protocol LoRaWAN and Sigfox
Transmission power up to14 dBm
Sensitivity -137 dBbm
Power supply energy harvesting/battery-free or battery
Operating temperature -40°C to +85*C
Dimensions 48 x 48 x 20 mm energy-harvesting version
110 x 48 x 28 mm battery-operated version
Weight 95 gr battery operated version
Certifications RED



EMBEDDED SENSORS

1. TEMPERATURE AND HUMIDITY SENSOR

Temperature range -40°C to +85°C
Temperature accuracy ±0.1°C
Humidity range 0% to 100% RH
Humidity accuracy ±1.8% RH



2. ACCELERATION SENSOR

Measurement range ±2g / ±4g  / ±8g / ± 16g (±16g by default)
Output data rate 1.6 Hz o 1600 Hz (1600 Hz by default)
Low noise down to 181 μg/√Hz
ODR 1.6 Hz to 800 Hz
Digital output interface high-speed I2C and SPI



3. PRESSURE SENSOR

Pressure range 260 hPa to 1260 hPa
Pressure accuracy ±0.2 hPa
Low pressure sensor noise 0.34 hPa
High-performance TCO 0.45 Pa/°C
Temperature compensation embedded
Pressure data output 24 bit
ODR 1 Hz to 200 Hz
Digital output interface high-speed I2C and SPI
